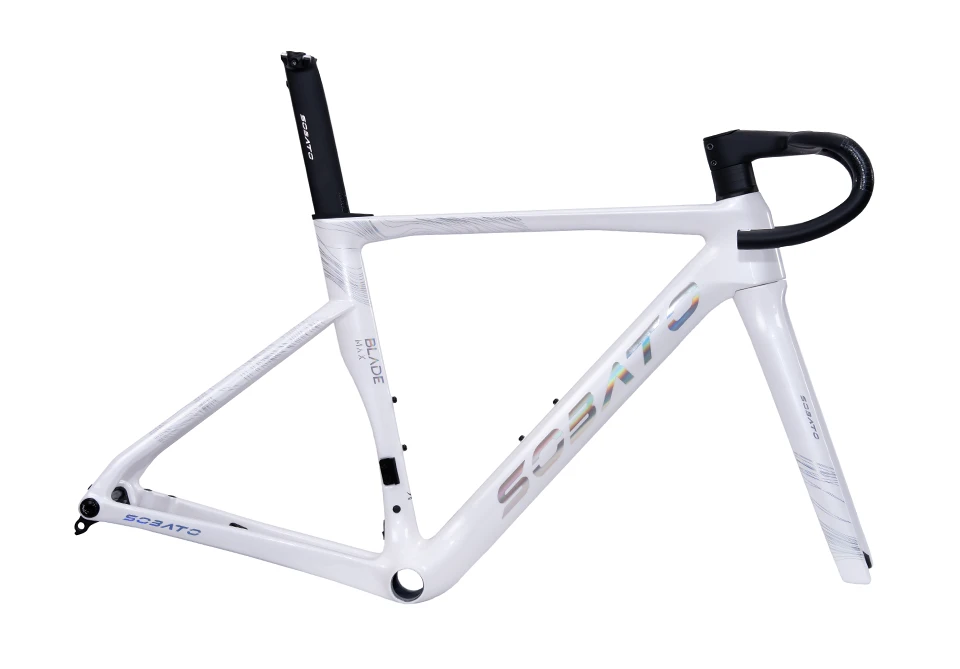

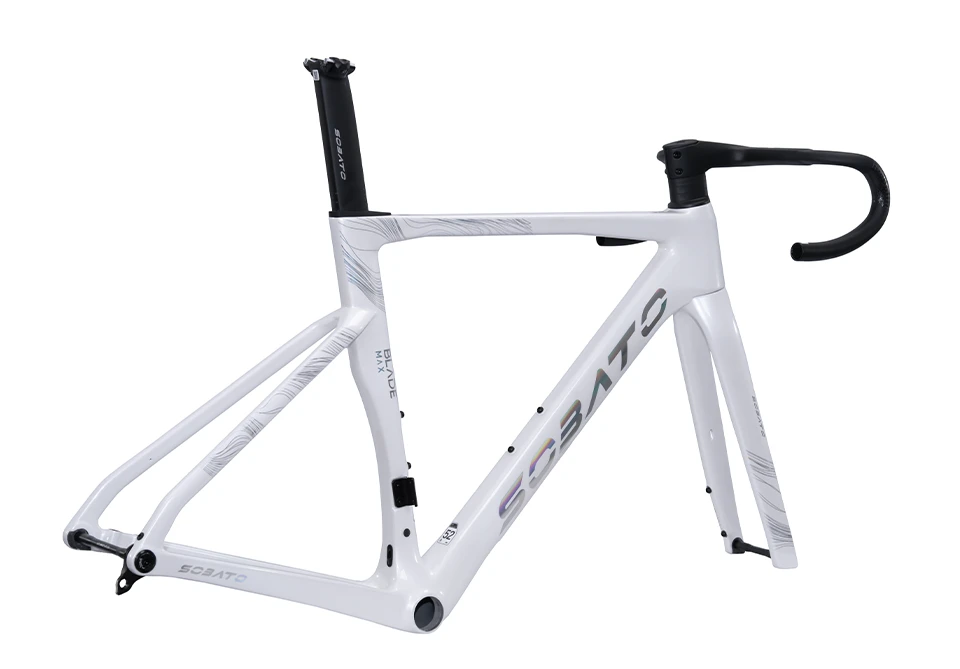

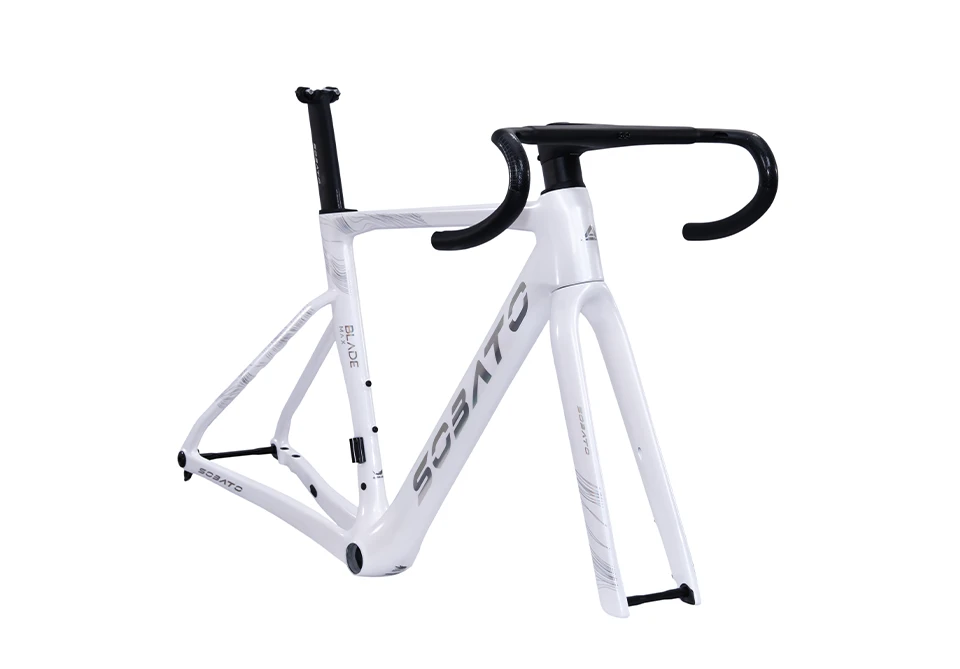

BLADE (aerodynamic road bike)

Japan's Toray T800+M40J high modulus prepreg is used as the base to create a perfect balance between rigidity and light weight. The latex inner film process creates a smooth and dense inner wall structure, giving strength to every gram of weight. The flat aerodynamic tube shape is aerodynamically optimized and cuts the airflow like a sharp blade, significantly reducing the drag coefficient. The sharp geometric lines and streamlined contours blend together to form an effective aerodynamic barrier during high-speed riding. The frame achieves efficient energy transfer with excellent pedaling rigidity, bringing control response like an arm and a finger.

Walking through the wind, there is no need to wrestle with resistance; when breaking through, every watt of power is converted into a decisive opportunity.

Technical specifications

111

1111

geometry

	44	44	44	44	44	44	44	44
Bottom bracket sinkage	165mm	165mm	165mm	165mm	165mm	165mm	165mm	165mm
Bottom bracket sinkage	165mm	165mm	165mm	165mm	165mm	165mm	165mm	165mm
Bottom bracket sinkage	165mm	165mm	165mm	165mm	165mm	165mm	165mm	165mm
Bottom bracket sinkage	165mm	165mm	165mm	165mm	165mm	165mm	165mm	165mm
Bottom bracket sinkage	165mm	165mm	165mm	165mm	165mm	165mm	165mm	165mm

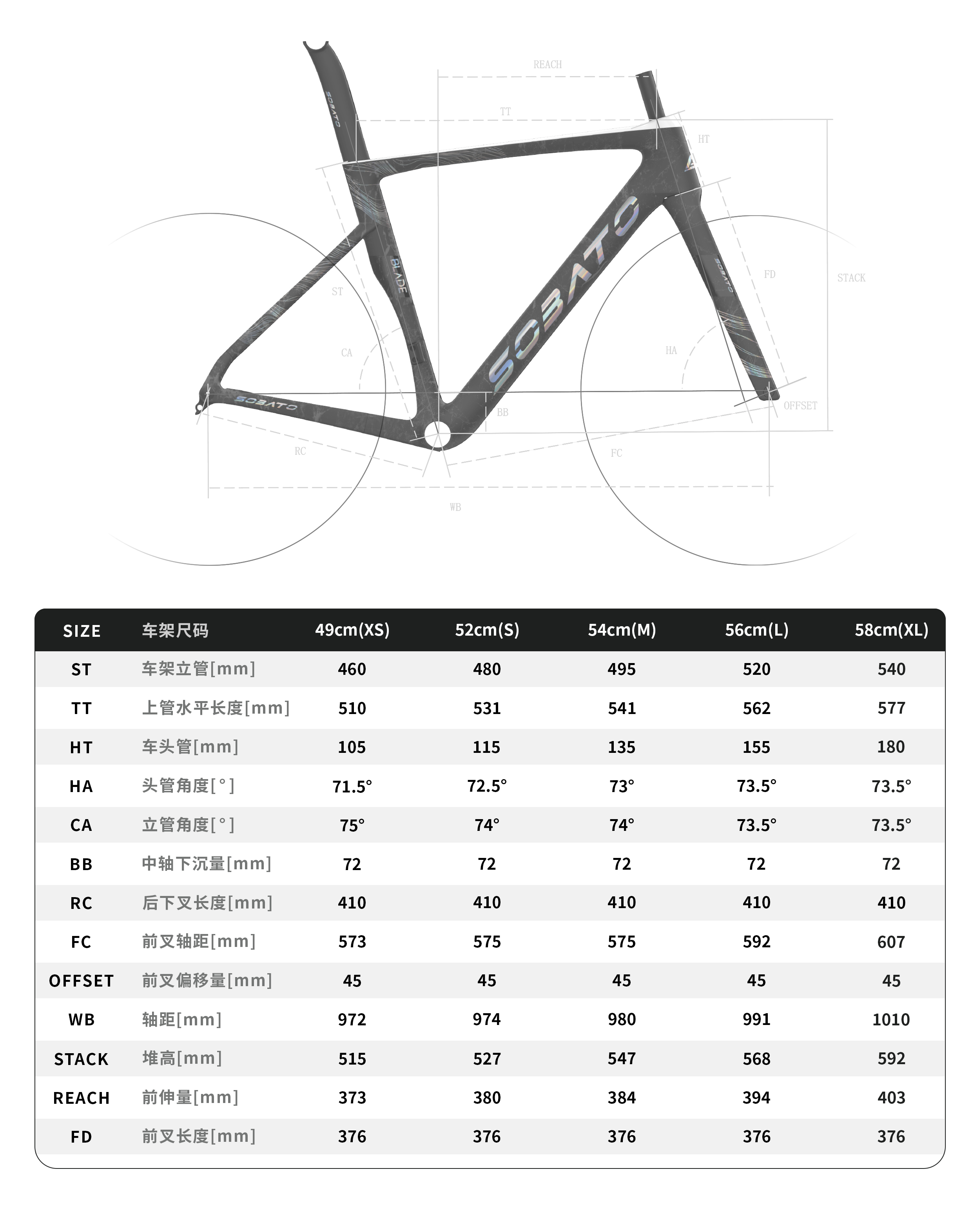

WCB-R-455-GEOMETRY-R1

SIZE	St	TT	HT	ha	CA	BB	RC	FC	0FFSET	WB	STACK	REACH
49	460	510	105	71.5°	75°	72	410	573	45	972	515	373
52	480	531	115	72.5°	74°	72	410	575	45	974	527	380
54	495	541	135	73°	74°	72	410	581	45	980	547	384
56	520	562	155	73.5°	73.5°	72	410	592	45	991	568	394
58	540	577	180	73.5°	73.5°	72	410	607	45	1006	592	403
